主要特點:

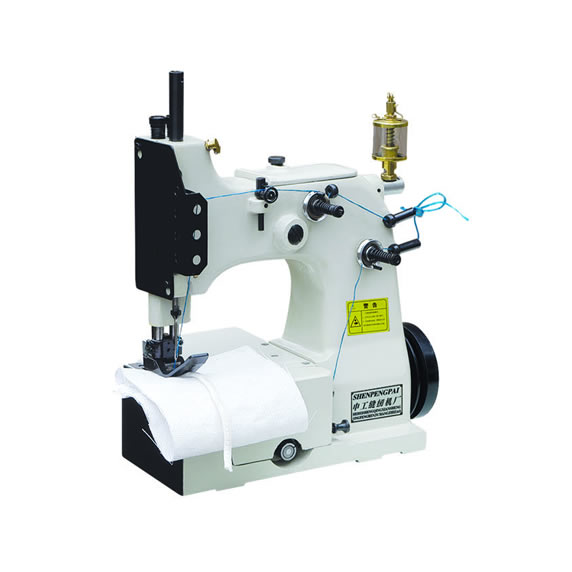

FGK68-2集裝袋鏈縫機是采用優質鋼材,精心設計的集裝袋鏈?zhǔn)娇p紉機.它滿足了客戶集裝袋鏈縫的工藝要求。本機具有縫紉速度快、噪音低、針距調節范圍大、操作簡單、便于保養維護等優點。對需要增加防塵條或無防塵條的縫制理想的鏈縫設備。
Main characteristic
FGK68-2 Chain Sewing Machine for the Containing bag adopts hing quality steel and elaborate design technology.It could meet the needs of technology of chain sewing the containing bag for customers in domestic and abroad.It has advantages of high speed of sewing.Low noise,big regulated range of stitch distance;it is easy for operating,and convenient for maintenance.It is the most ideal chain sewing equipment for sewing in dust-proof strip or non dust-proof strip.
技術規格 Technical Specifications
|
縫紉速度 ≤1500針/分鐘(S/Min.)
Speed of sewing |
| 針腳提升 8-15mm
Length of needling distance |
|
壓腳提升 15mm
Presser lifting |
| 機針型號 GK8×250-300-400
Model of needle |
|
電動機功率 550瓦1400轉/分(縫紉機專用電機)
Power of electric motor 550W1400R/Min(Special purpose electric motor for sewing machine) |
|
潤滑方式 半自動潤滑
Lubricant style Semi-automatic lubricate |
|
縫紉線跡 雙線鏈?zhǔn)?/SPAN>
Sewing thread trace Double thread chain |
|
