 當前位置:首頁 - 產品中心 - 皮革厚料縫紉設備

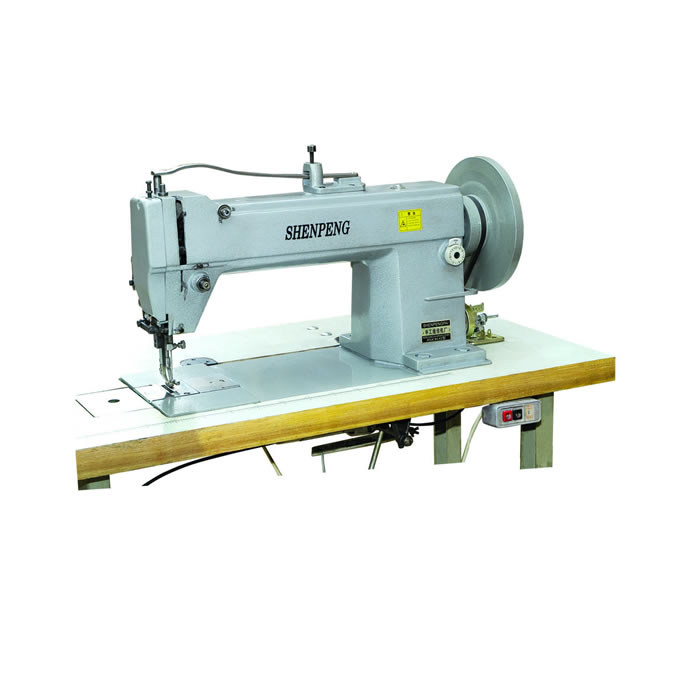

  FGC8132大型同步送料皮革厚料平縫機

產品名稱:FGC8132大型同步送料皮革厚料平縫機

產品編號:006
產品型號:FGC8132
更新時間:2008.08.19
出品單位:河北申工縫紉機制造有限公司---|厚料縫紉機|皮革縫紉機|集裝袋縫紉機|帆布縫紉機|編織袋縫紉機|地毯包邊機|縫包機|縫紉機零件
瀏覽次數:
   產品詳細介紹


主要特點

本機是專為縫制皮革、箱包、帆布、等各種厚料制口開發的厚料縫紉機,本機操作空間大、壓腳提升高、容線量大、粗細線均能縫制。本機采用連桿挑張,KRT132型超大進口旋梭勾線,形成鎖式線跡,配置倒縫功能、上下同步送料機構和壓腳交替提升機構。上下軸用螺旋傘齒輪傳動,圓盤式針距調節機構,線跡平整,縫厚能力強,層縫性能好;倒順縫針距誤差小,機器噪音低,維護保養主便,工作效率高。是目前較理想的厚料縫制設備。



主要特點

本機是專為縫制皮革、箱包、帆布、等各種厚料制口開發的新一代厚料縫紉機,本機操作空間大、壓腳提升高、容線量大、粗細線均能縫制。本機采用連桿挑張,KRT132型超大進口旋梭勾線,形成鎖式線跡,配置倒縫功能、上下同步送料機構和壓腳交替提升機構。上下軸用螺旋傘齒輪傳動,圓盤式針距調節機構,線跡平整,縫厚能力強,層縫性能好;倒順縫針距誤差小,機器噪音低,維護保養主便,工作效率高。是目前國內外較理想的厚料縫制設備。



Main characteristic



   It is the new developed sewing machine for sewing the thick cloth,such as leather,casebag and canvas etc.It has big operating space,high lifted presser and big thread containing capacity,so it could sew in both of the threadlet and thick line.It adopts the connecting to lifting up the thread and KRT132model imported superhuge rotary shuttle to hook the thread ,which formed the latching stitch; it equipped with the up and down synchronous feed mechanism with inverted sewing function and presser alternating lifting mechanism.The upper axle and lower axle are transmitted by the spiral bevel gear;it adopts the disk type needling-distance regulating mechanism.It has characteristics of smooth stitch,strong thick cloth sewing capcity,good laminate swing capacity,small error of inverted sewing stitches or right sewing stitches,low nose of machine and high operating efficiency.It is convenient for maintenance. It is the ideal sewing equipment for thick cloth in domestic and abroad at present.



技術規格   Technical Specifications

 縫紉速度                          1200/分鐘(S/Min)

Speed of sewing

針距長度                          0-13mm

Length of needling distance

壓腳提升                               20mm

Presser lifting

操作空間                       210×400mm

Operating space

機針型號                       7×200-230-250-300

Model of needle

電動機功率                   5501400轉/(縫紉機專用電機)

Power of electric motor          550W1400R/Min(Special purpose electric motor for sewing machine)

機頭凈重                        80kg

N.W of  head  sectiog

針桿行程                        47mm

Travel of needle pole
